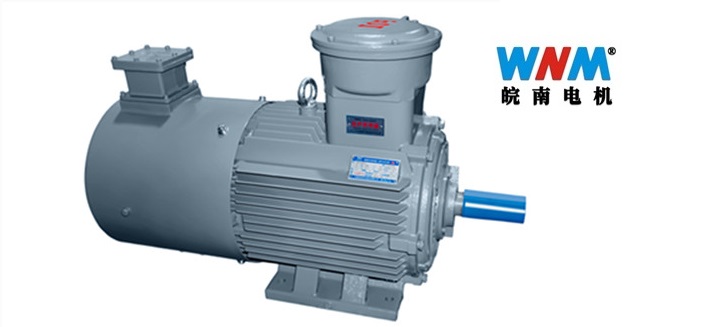

YBBP Series Flameproof Variable-frequency Adjustable-speed Induction Motors
- * Frame sizes: 80 to 355 * Rated output: 0.18 to 315kW * Insulation class: F * Voltage: 380V * Frequency range of 2P, 4P: 5-60Hz (frame size 225-355 of 2P and 355 4P) 5-100Hz (frame size 80-200 2P) * Frequency range of 6P, 8P, 10P: 5-100Hz
- Hotline:
+86-0563-5031948
- Fax:
+86-0563-5028878
- E-Mail:
- Download:
Stepless speed regulation operation in a wide range
Good performance
Energy saving
High-grade insulation material and special technological withstand high frequency pulse impact
Separate fan for forced- ventilation
Frequency range of 2P, 4P: 5-60Hz (frame size 225-355 of 2P and 355 4P)
5-100Hz (frame size 80-200 2P)
Frequency range of 6P, 8P, 10P: 5-100Hz
Ideal for the plant or workshop (Ex dⅡAT4、dⅡBT4) where dangerous explosion mixture of air with T1-T4 class ⅡA ⅡB flammable substance in the form of gas or vapor is present.
Common frame size corresponding to the power:
Frame Size |
80 |
90 |
100 |
112 |
132 |
160 |
180 |
200 |
225 |
250 |
280 |
315 |
355 |
Power range kW |
0.18~1.1 |
0.37~2.2 |
0.75~3 |
1.5~4 |
2.2~7.5 |
4~18.5 |
11~22 |
15~37 |
18.5~45 |
30~55 |
37~90 |
45~220 |
90~315 |
Poles |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8 |
2.4.6.8.10 |
2.4.6.8.10 |
Remark: For the other special rated powers, please contact with us.
Frame |
basic type |
derived type |
||||||||||||||
B3 |
B5 |
B35 |
V1 |
V3 |
V5 |
V6 |
B6 |
B7 |
B8 |
V15 |
V36 |
B14 |
B34 |
V18 |
||
80~112 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
|
132~160 |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
√ |
- |
- |
- |
|
180~280 |
√ |
√ |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
|
315~355 |
√ |
- |
√ |
√ |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
- |
