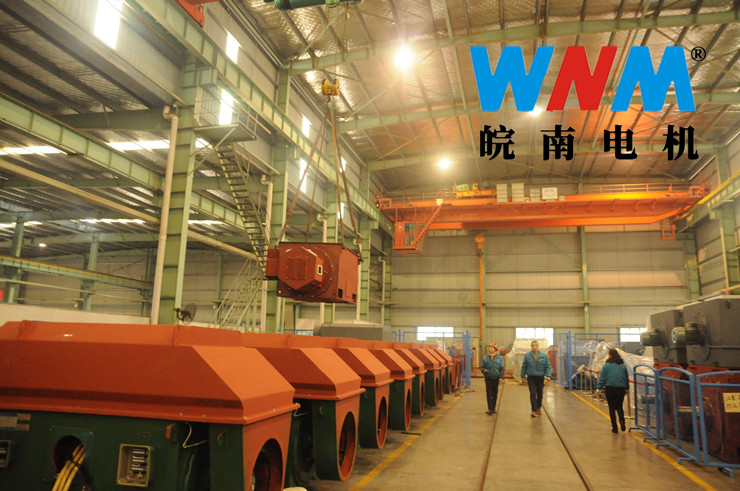

Wannan Motor - High Production Capability
prevnext

YKK Series High Voltage Three Phase Induction Motors

    • * Frame sizes: 355-1000
      * Rated output: 185-8000kW
      * Insulation class: F
      * Degree of protection: IP54 /IP55
      * Enclosure: IC611
      * Mounting: Horizontal
      * Rotor: Squirrel cage
      * Bearing: Rolling bearing or sleeve bearing
      * Voltage: 6kV, 10kV
      * Efficiency: IE1 & IE2 & IE3
    • Hotline:
      +86-0563-5031948
    • Fax:
      +86-0563-5028878
    • Download:



    Y Series Medium Size H355-630 Dodumentation

    Y Series Large Size H710-1000 Dodumentation



    This motor can be processed by the anticorrosion anti-mould-proof process to derive outdoor (W) and outdoor corrosion protection (WF) motors.

    High efficiency, energy saving.

    Low vibration.

    Reliable performance and easy installation and maintenance.

    The frame is made of steel plate being welded up into form of square tank shape with light weight and firm rigidity.

    Stator is an outer-press-assembly structure.

    The stator winding is F grade insulation at the winding’s end part being firm banded.

    The whole stator has been treated with VPI technology to make stator with a robust body and good electric and moisture proof.

    The rotor can be developed into casting aluminum rotor or copper bar rotor.

    The copper cage rotor guide bar and end ring are welded by intermediate frequency, and the copper guide bar diameter groove is treated with solid technology to make it have high reliability.





    Ideal for driving all kinds of general machinery, such as water pump, fan, compressor, crusher and etc.



    Common frame size corresponding to the power:

    6kV 50Hz

    Frame Size 355 400 450 500 560 630 710 800 900 1000
    Power range kW 185~315 185~500 185~800 220~1250 355~1800 560~2500 500~3550 800~5000 1250~7100 1800~8000
    Poles 2.4 2.4.6.8

    2.4.6.

    8.10.12

    2.4.6.

    8.10.12

    2.4.6.8

    10.12

    2.4.6.8

    10.12

    4.6.8.

    10.12.16

    4.6.8.

    10.12.16

    4.6.8.

    10.12.16

    6.8.10

    .12.16





    10kV 50Hz

    Frame size - - 450 500 560 630 710 800 900 1000
    Poles - - 2.4.6 2.4.6.8.10

    2.4.6.8.

    10.12

    2.4.6.8.

    10.12

    4.6.8.

    10.12.16

    4.6.8.

    10.12.16

    4.6.8.

    10.12.16

    4.6.8.

    10.12.16

    Power range kW - - 220~500 220~900 250~1250 450~1800 500~3150 710~5000 1120~7100 1600~7100

    Remark: For the other special rated powers, please contact with us.
