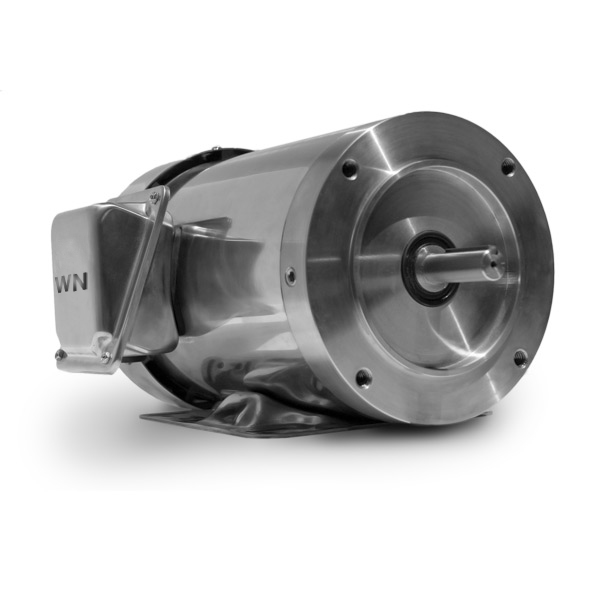

56C Frame Stainless Steel Motors

    • Frame:56C

      Out Power:1/3~3hp

      Inverter Duty Rated: 3:1CT & 5:1VT

      Service Factor: 1.15

      Design: "B" or “C”

      Protection Degree: IP55

      Enclosure: TEFC

      VPI process applied for best electrical performance

      C-Face with or without feet

      Class “F” insulation with Class “B” rise

    • Hotline:
      +86-0563-5031948
    • Fax:
      +86-0563-5028878



    56C Frame Stainless Steel Motors – 1/3-3 HP



    3PH TEFC 60 Hz NEMA AC C-Face Footed and Round Body Washdown Motors



    WANNAN continuous duty 56C Frame Stainless Steel motors are designed to meet the severe-duty sanitation requirements for food-grade and high pressure washdown motor applications. WANNAN 56C Frame Stainless Steel electric motors feature a 1.15 service factor, IP55 degree of protection, interior anti-corrosion resistant coated, and are 100% TEFC or TENV 300 series stainless steel constructed for pharmaceutical, food & beverage processing and packaging industries.



    Washdown Motor Features:

    1. Inverter Duty Rated:  3:1CT & 5:1VT
    2. Service Factor:  1.15
    3. Design:  "B"
    4. Protection Degree:  IP55
    5. Enclosure:  TEFC or TENV
    6. C-Face with or without feet
    7. Class “F” insulation with Class “B” rise
    8. Continuous duty - Washdown duty
    9. Sealed bearings
    10. Squirrel cage rotor
    11. 300 series stainless steel construction
    12. 12-Gauge puddle welded base on footed motors
    13. Anti-corrosion coating applied
    14. DE and NDE drain holes every 90°15
    15. F1 assembly
    16. CSA-US certified and CE marked


    Applications:

    Continuous duty stainless steel motors designed to meet the severe sanitation requirements of food-grade and high pressure washdown motor applications in the pharmaceutical, food and beverage, processing and packaging industries.


    Duty Cycle (other than continuous duty)
    Customized Enclosure
