YR Medium Size High Voltage Three-Phase Induction Motors
- Power: 160KW-2500KW Pole: 4P、6P、8P、10P、12P Voltage: 6KV、10KV or others Frame No.: 355-630 Protection Class: IP23、IP44(duct ventilation) Insalation Class: F、H Mounting: IMB3
- Hotline:
+86-0563-5031948
- Fax:
+86-0563-5028878
- E-Mail:
YR Series Medium Size High Voltage Three-Phase Induction Motors
160-2500kW
Features:

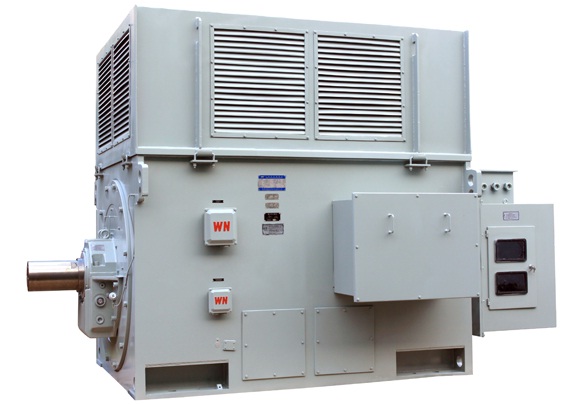

YR series motor has the box-type construction, which was made up of steel plate welded with each other, lightweight and good stiffness. On top of the motor is the protective cover, convenient to maintenance and replacement. The stator adopts the press construction; the winding with class F insulation and VPI impregnating, which ensure the reliable of the insulation, the mechanical stress and the capable of resistant humidity. The basical protection class is IP23; IP54 motor can be supplied according to requirement.
YR series medium size 6kV 3-phase slip-ring asynchronous motors are the optimized series motors of JTEM.established on the basis of our many years experience of essing and manufacturing motors and technology introduced from American WESTING-HOUSE,for upgrading the old JR series.
YR series medium size 10kV 3-phase slip-ring asynchronous motors are JTEM’S another new series products.established on the basis of our experience of designing and manufacturing 6kV 3-phase slip-ring asynchronous motors.These series motors can be direct coupled 10kV electrical net. There are more advantages than 6kV motors,for example reducing equipments ,running security,saving cost,and downing losses.
Applications:
General purpose indlucing ventilator, compressor, water pump, crushing mill, cutting machine, transportation machine and other equipments. It is also used as the primitive for the mine, machanical industry; petroleum & chemistry industry; power plant and so on.
Use Condition:
1. Sutibale Places: Indoor or outdoor、no dangerous gas environment
2. Ambient temperature: -15~+40℃
3. Altitude: Below 1000m
4. Protection Class: IP23、IP44(duct ventilation)
5. Insulation Class: F、H
6. Mounting: IMB3
